Re: 82 Rabbit Pickup TDI swap

Postby Kneight Ridaz » May 26th, 2014, 3:23 am

Been so busy working on the truck i forgot to post some updates.

Got the engine mounted and the front end back together.

Fabbed up the stainless tubular manifold, pretty stoked how it turned out :D

Test fitted the turbo and was hoping I could use a mandrel bend for the 3" downpipe... But it wouldn't clear the heater core lines so resorted to good ol' pie cuts to get the tight bend.
82 Rabbit Pickup
01 1.8T Jetta
06 LBZ Duramax 2500HD

-Curtis
User avatar
Kneight Ridaz

Posts: 15
Joined: March 9th, 2014, 4:39 pm

Re: 82 Rabbit Pickup TDI swap

Postby Kane » May 26th, 2014, 12:15 pm

I love your build.

This is gonna be a MONSTER
1983 Rabbit diesel-Summer
2004 Jetta TDI sport- Daily
2002 Jetta 1.8t fasssst-Wifes
User avatar
Kane
I Think I Am In A Gang

Posts: 264
Joined: November 26th, 2011, 1:09 am
Location: Cranston

Re: 82 Rabbit Pickup TDI swap

Postby dublu » May 26th, 2014, 9:54 pm

oh dam! so nice
2012 Jetta, 2000 Audi A4, 84 Yamaha, 2003 Cooper

dublu.tumblr.com, dublu.ca, placidrhino.ca, @placidrhino
User avatar
dublu
0-100

Posts: 165
Joined: November 30th, 2011, 1:04 pm
Location: Huntington

Re: 82 Rabbit Pickup TDI swap

Postby deuce-24 » June 7th, 2014, 5:25 am

ermaaahhhhgeeerd!!!! :D
deuce-24
0-60

Posts: 88
Joined: November 25th, 2011, 3:25 am

Re: 82 Rabbit Pickup TDI swap

Postby Kneight Ridaz » September 19th, 2014, 3:11 pm

Sorry its been so long since I've updated this! I took August off from working on the caddy due to an ongoing shoulder injury. I'm slowly getting back into working on the truck and will hopefully have it on the road very soon. Here are the latest updates:

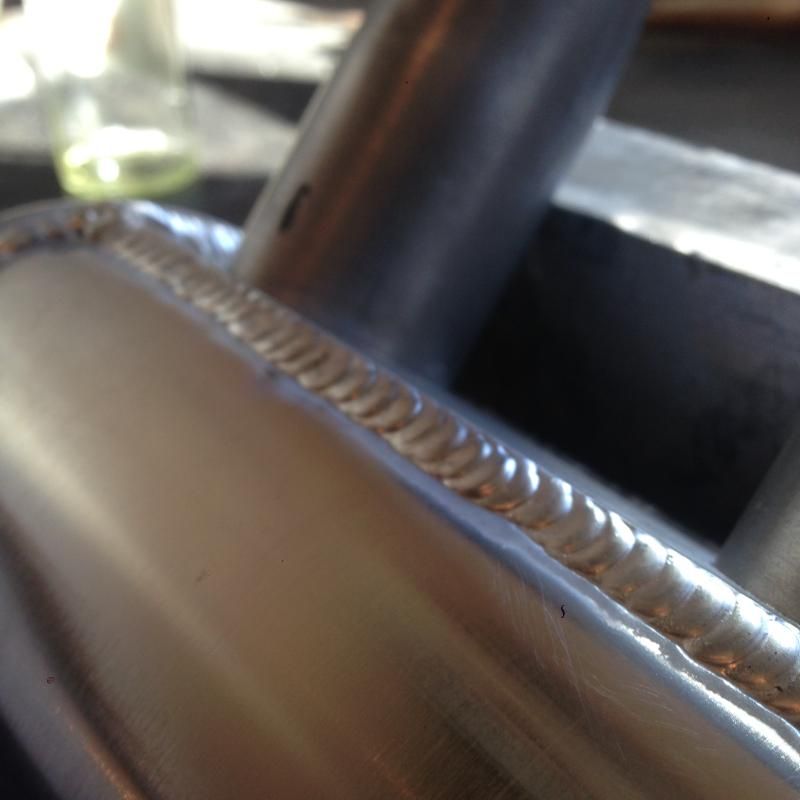

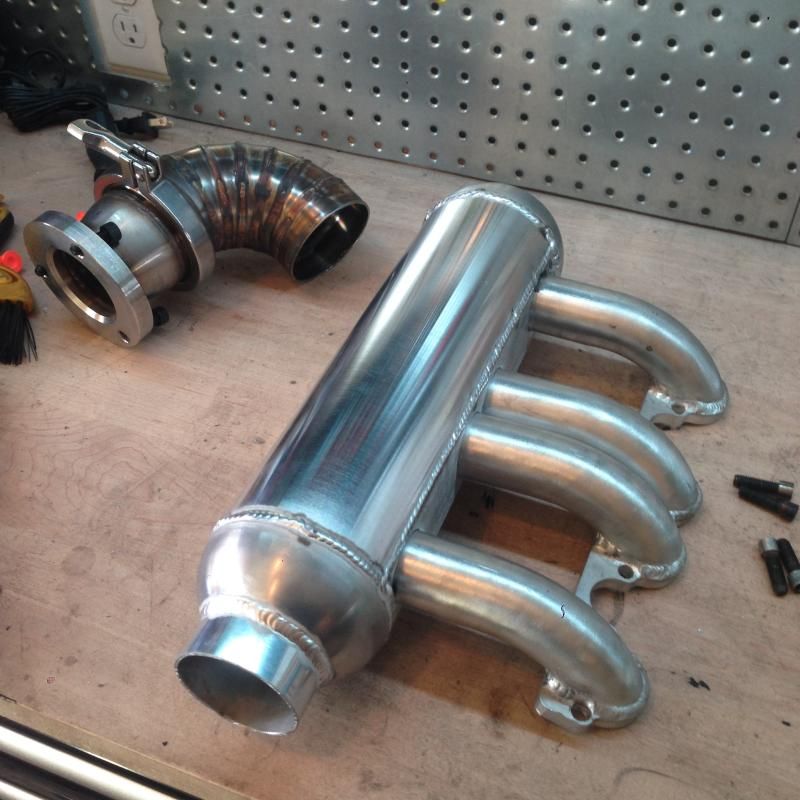

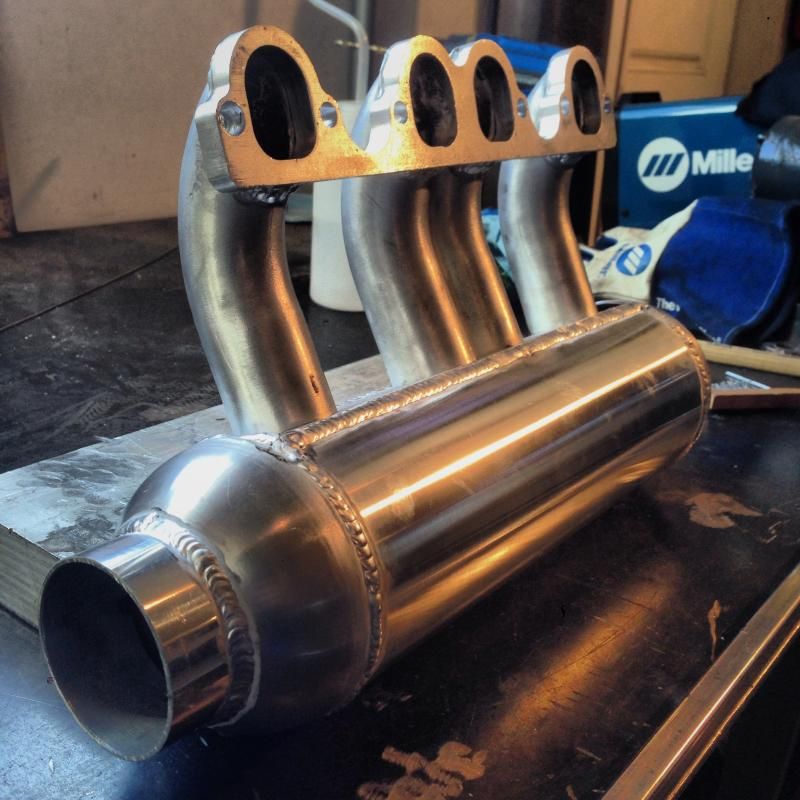

The aluminum plenum intake all welded together.

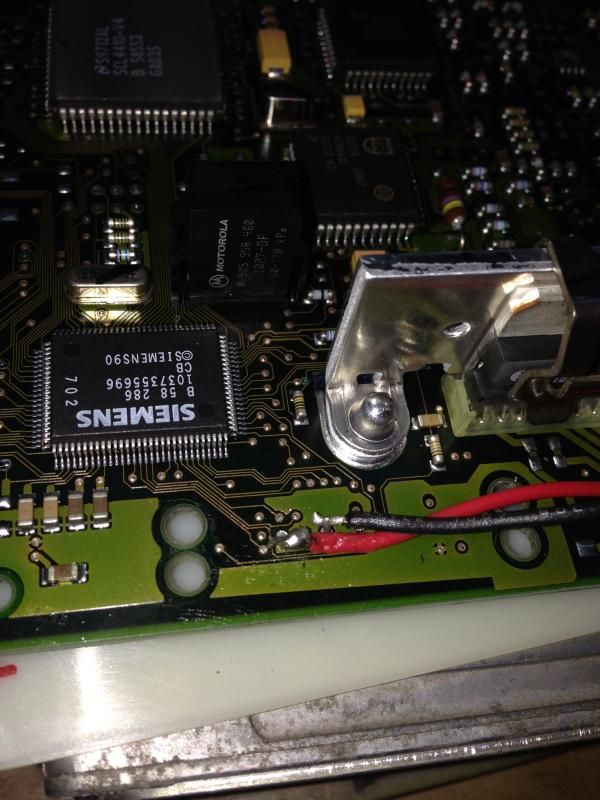

Deleted the 2bar MAP sensor and spliced in a 3bar. Moar boost baby!

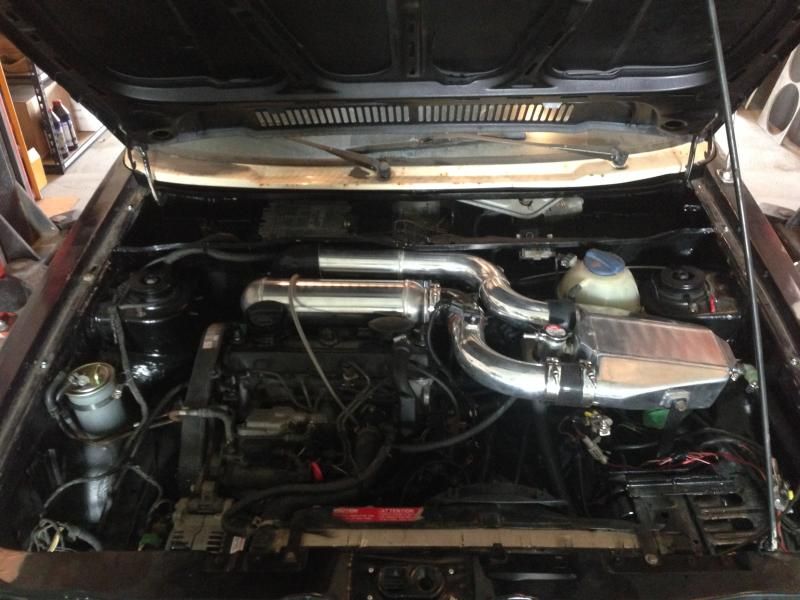

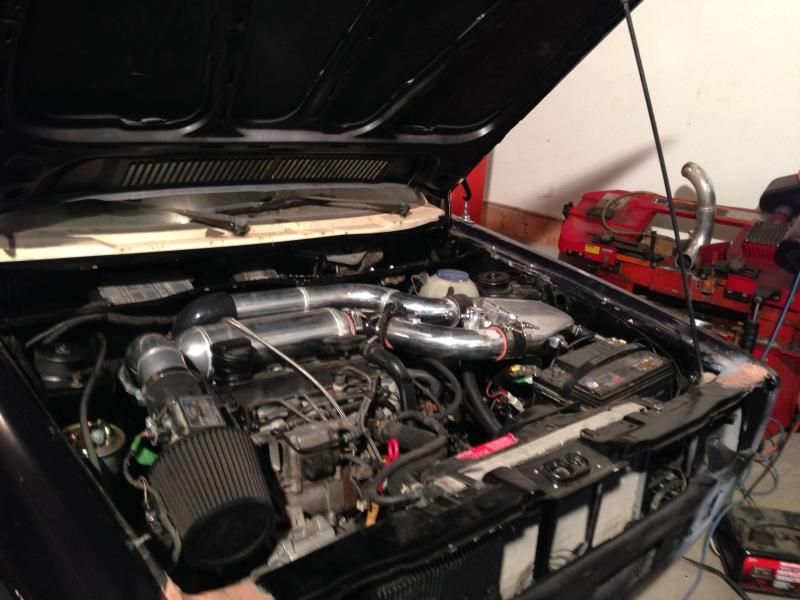

Air to water intercooler installed

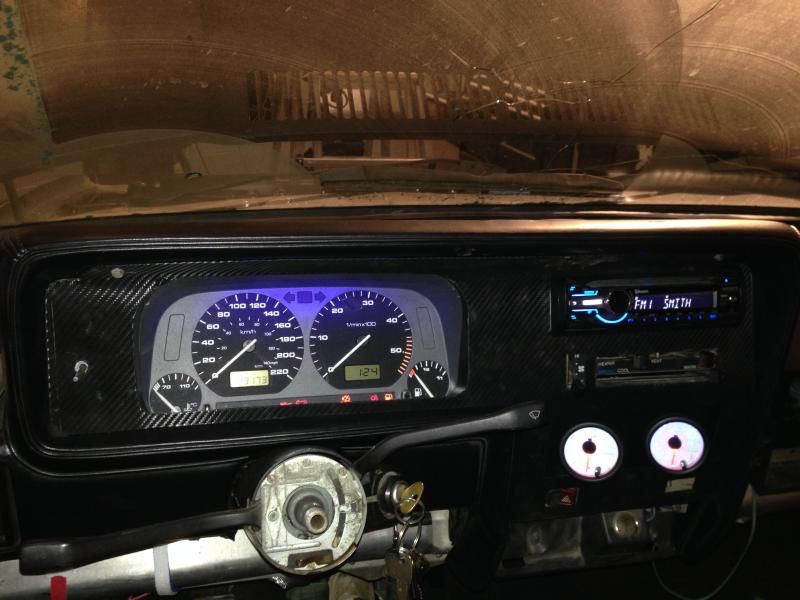

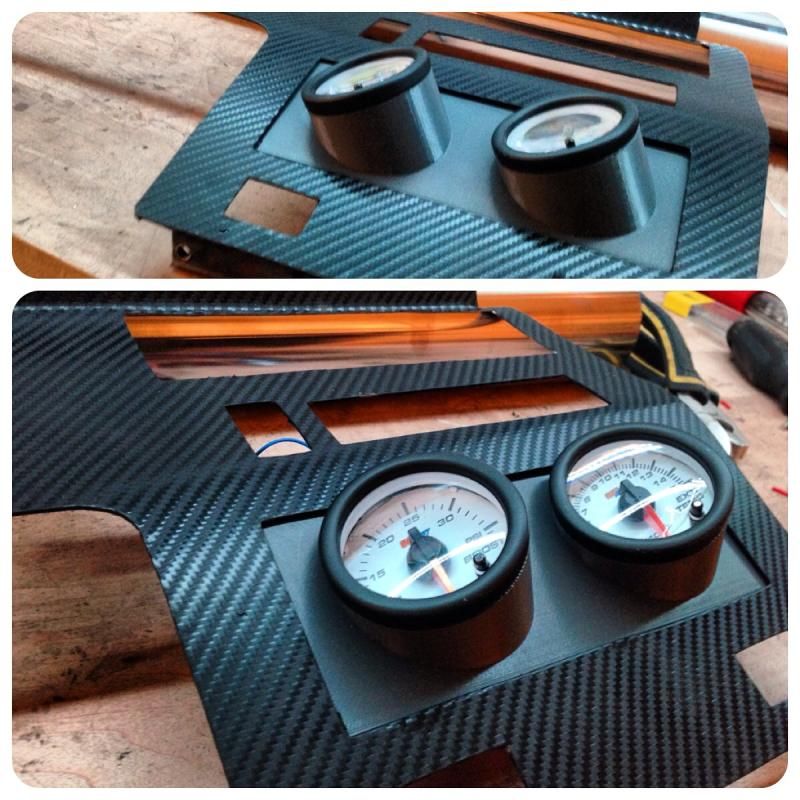

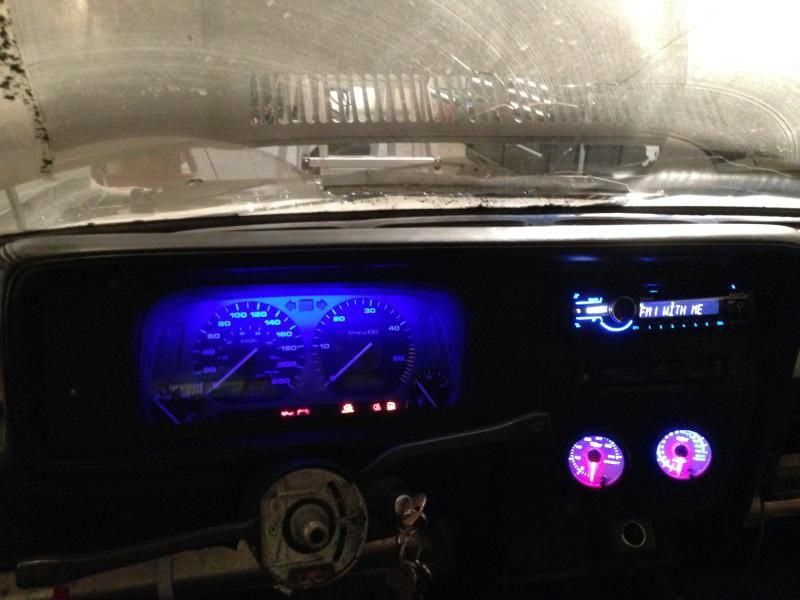

Had to make my own dash panel so I could fit the Mk3 cluster. Added some carbon fiber wrap (thanks to Joe @Dublu) and 3D printed a custom gauge mount for the boost/EGT.

Turned out well considered how much of a pain in the ass it was to fit that cluster.



All that is left for a test drive is to bleed the injectors, hang the exhaust, and install the passenger axle. Crossing my fingers that ill be rolling some coal this weekend :D
82 Rabbit Pickup
01 1.8T Jetta
06 LBZ Duramax 2500HD

-Curtis
User avatar
Kneight Ridaz

Posts: 15
Joined: March 9th, 2014, 4:39 pm

Re: 82 Rabbit Pickup TDI swap

Postby DeleriousZ » September 19th, 2014, 3:44 pm

Beauty!! Love that air to water setup!
User avatar
DeleriousZ
0-100

Posts: 156
Joined: June 2nd, 2012, 3:54 am
Location: Calgary

Re: 82 Rabbit Pickup TDI swap

Postby Fizzo20 » September 19th, 2014, 7:45 pm

Ohhhh this thing is gonna be sweeeet!
"It's not about the destination, it's about the journey!"
-Faraaz
MK2 Jetta Coupe VR6 - Summer daily - Build thread/Pics
B5 A4 1.8T Quattro - Winter daily
User avatar
Fizzo20
I Am In A Gang?

Posts: 788
Joined: November 17th, 2011, 6:03 am
Location: Sundance

Re: 82 Rabbit Pickup TDI swap

Postby heytrid » September 20th, 2014, 1:44 am

sweeet
BJ W.
I don't like VW's, I just like the woman they attract..........
User avatar
heytrid
Site Admin

Posts: 364
Joined: November 15th, 2011, 1:44 am

Re: 82 Rabbit Pickup TDI swap

Postby Kneight Ridaz » January 21st, 2015, 9:37 pm

Sorry i haven't update this in awhile, iv been suffering from a shoulder injury. I tore cartilage in my shoulder that requires surgery.. so iv been very limited on what i can do to the truck. Needless to say its been running and drives... but not the greatest. Im having a fueling issues that has been narrowed down to a dirty fuel tank. Once fueling is sorted out i will be installing the .24 nozzles and ordering my tune from Malone. Then bags and bodywork.
Ill keep you posted.

Curt.

82 Rabbit Pickup
01 1.8T Jetta
06 LBZ Duramax 2500HD

-Curtis
User avatar
Kneight Ridaz

Posts: 15
Joined: March 9th, 2014, 4:39 pm

Re: 82 Rabbit Pickup TDI swap

Postby twitch » January 22nd, 2015, 2:12 am

Hey Curt what kinda fueling issues are you having? And what makes you think its a dirty tank?

Do mk1's have an in tank screen? I've yet to find a solid answer if mk2's do or don't.

I've been having some diesel fueling issues of my own and I've tried my best to try and sort it out but still have a minor issue, I'm just curious as to what you've tried and been able to narrow down.
-91 TD Jetta
-91 GTI
-Lifted Silverado
-Bunch Of Dirtbikes
twitch
0-60

Posts: 77
Joined: November 26th, 2011, 11:36 pm
